Faital Pro

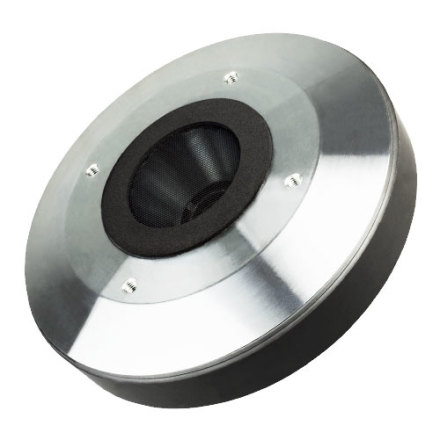

Faital PRO HF2000 - 2" kompressionsdriver

Artnr: FPHF2000
Du måste vara inloggad för att köpa produkten. Registrera dig här.

Beskrivning



FaitalPro HF2000 - 2" kompressionsdriver



Technical Parameters
Nominal Impedance 8 Ohm
Minimum Impedance 7 Ohm
AES Power above 0.9 kHz (1) 100 W
AES Power above 0.65 kHz 50 W
Maximum Power above 0.9 kHz (2) 200 W
Maximum Power above 0.65 kHz 100 W
Minimum Crossover Frequency (3) 0.9 kHz
Sensitivity (1W/1m) (4) 110 dB
Frequency Range 0.5÷18 kHz
Voice Coil Diameter 74 mm (2.91 in)
Winding Material Al
Former Material Kapton
Diaphragm Material Titanium
Diaphragm Shape Dome
Winding Depth 2.35 mm (0.09 in)
Magnetic Gap Depth 3.2 mm (0.13 in)
Flux Density 1.95 T
Magnet Neodymium Ring
Re 5.6 Ohm
Phase Plug Design Annular
NET Air Volume filled by HF Driver 0.6 dm^3 (0.021 ft^3)
Nominal Specifications
Throat Diameter 50.8 mm (2 in)
Overall Diameter 130.5 mm (5.14 in)
90° Mounting Holes Diameter (4xM6) 102 mm (4.02 in)
Depth 83.5 mm (3.29 in)
Net Weight 2.75 Kg (6.1 lb)
Shipping Box 185 x 170 x 122 mm
(7.3 x 6.7 x 4.8 in)
Shipping Weight 2.9 Kg (6.4 lb)
