Faital PRO HF103 - 1" kompressionsdriver

Artnr: FPHF103
Du måste vara inloggad för att köpa produkten. Registrera dig här.
Artnr: FPHF103-16
Du måste vara inloggad för att köpa produkten. Registrera dig här.

Beskrivning



FaitalPro HF103 - 1" kompressionsdriver



Technical Parameters
Nominal Impedance 8 Ohm
Minimum Impedance 6.8 Ohm
AES Power Handling (1) 60 W
Maximum Power Handling (2) 120 W
Minimum Crossover Frequency (3) 1.3 kHz
Sensitivity (1W/1m) (4) 107 dB
Frequency Range 1÷20 kHz
Voice Coil Diameter 44 mm (1.73 in)
Winding Material Al
Former Material Kapton
Diaphragm Material Ketone Polymer
Diaphragm Shape Dome
Winding Depth 2.3 mm (0.09 in)
Magnetic Gap Depth 2.85 mm (0.11 in)
Flux Density 1.5 T
Magnet Ferrite Ring
Re 5.8 Ohm
Phase Plug Design Annular
NET Air Volume filled by HF Driver 0.33 dm^3 (0.011 ft^3)

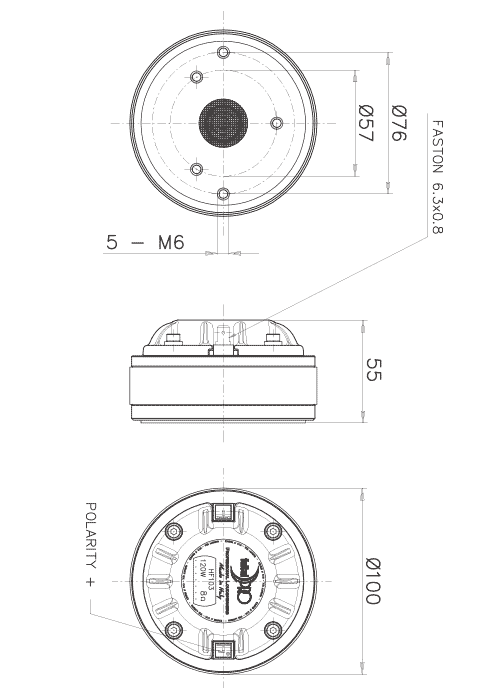

Nominal Specifications
Throat Diameter 25.4 mm (1 in)
Overall Diameter 100 mm (3.94 in)
180° Mounting Holes Diameter (2xM6) 76 mm (2.99 in)
Depth 55 mm (2.17 in)
Net Weight 1.3 Kg (2.9 lb)
Shipping Box 147 x 130 x 82 mm
(5.8 x 5.1 x 3.2 in)
Shipping Weight 1.6 Kg (3.5 lb)
