Faital PRO 6PR122 - Midbas 6,5" 240W / 97dB

Artnr: FP6PR122
Du måste vara inloggad för att köpa produkten. Registrera dig här.

Beskrivning



FaitalPro 6PR122 - 6" högtalarelement

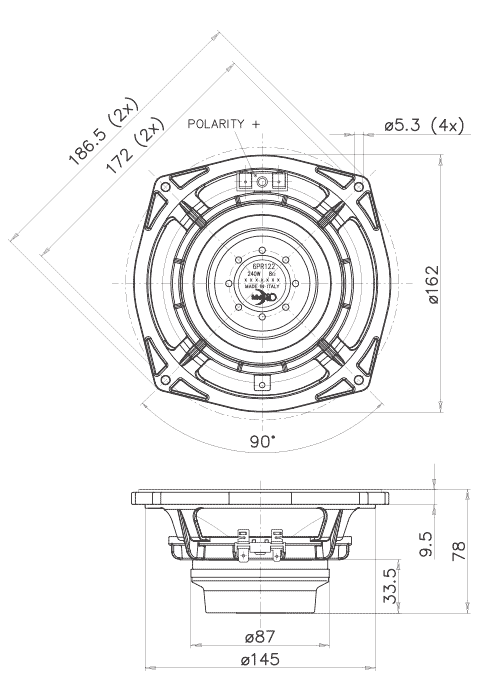

Nominal Specifications
Nominal Diameter 160 mm (6 in)
Overall Diameter 186.5/162 mm (7.34/6.37 in)
Bolt Circle Diameter 172 mm (6.77 in)
Baffle Cutout Diameter 147 mm (5.79 in)
Depth 78 mm (3.07 in)
Flange and Gasket Thickness 9.5 mm (0.37 in)
Net Weight 1.3 Kg (2.8 lb)
Shipping Box
(Single Carton Box)		 190 x 185 x 103 mm
(7.5 x 7.3 x 4.1 in)
Shipping Weight 1.5 Kg (3.2 lb)


Technical Parameters
Nominal Impedance 8 Ohm
Minimum Impedance 6.8 Ohm
AES Power Handling (1) 120 W
Maximum Power Handling (2) 240 W
Sensitivity (1W/1m) 97 dB
Frequency Range 125÷10000 Hz
Voice Coil Diameter 37 mm (1.46 in)
Winding Material Al
Former Material Kapton
Winding Depth 7.5 mm (0.30 in)
Magnetic Gap Depth 6 mm (0.24 in)
Flux Density 1.6 T
Magnet Neodymium Ring
Basket Material Aluminum
Demodulation Aluminum Ring
Cone Surround (3) Half Roll
NET Air Volume filled by Loudspeaker 0.54 dm^3 (0.019 ft^3)
Spider Profile 1x constant height waves
Thiele and small parameters
Fs 110 Hz
Re 6 Ohm
Qes 0.44
Qms 3.3
Qts 0.39
Vas 4.2 dm^3 (0.15 ft^3)
Sd 129 cm^2 (20.00 in^2)
Xmax (4) 2.75 mm
Xdamage (5) 11.6 mm
Mms 11.7 g
Bl 10.5 N/A
Le 0.15 mH
Mmd 10.9 g
Cms 0.18 mm/N
Rms 2.42 Kg/s
Eta Zero 1.22 %
EBP 250 Hz
