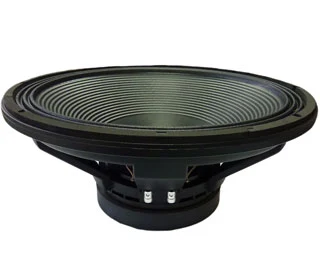

Beyma 18PBW1000Fe - 18" högtalarelement

Artnr: B18PBW1000Fe
Du måste vara inloggad för att köpa produkten. Registrera dig här.

Beskrivning



Beyma 18PBW1000Fe - 18" högtalarelement



THIELE SMALL PARAMETERS

Fs   31 Hz
Re   5.9 ohm
Qms   7.9
Qes   0.45
Qts   0.43
Vas   220 l
Cms   90 µm / N
Rms   6.5 kg/s
Efficiency %   2
Sd   0.125 m²
Xmax   12.5 mm
Vd   1562 cm³
Le @1 kHz   2.2 mH

TECHNICAL SPECIFICATIONS

Nominal diameter   460 mm 18 in
Nominal impedance   8 ohm
Minimum impedance   6 ohm
Power capacity   1000 W AES
Program power   2000 W
Sensitivity   96.5 dB 1 W @ 1 m @ ZN
Frequency range   20-20000 Hz
Voice coil diameter   100 mm 4 in
BL factor   25.8 N/A
Moving mass   0.233 Kg
Winding length   30 mm
Air gap height   12 mm
Xdamage pp   55 mm
